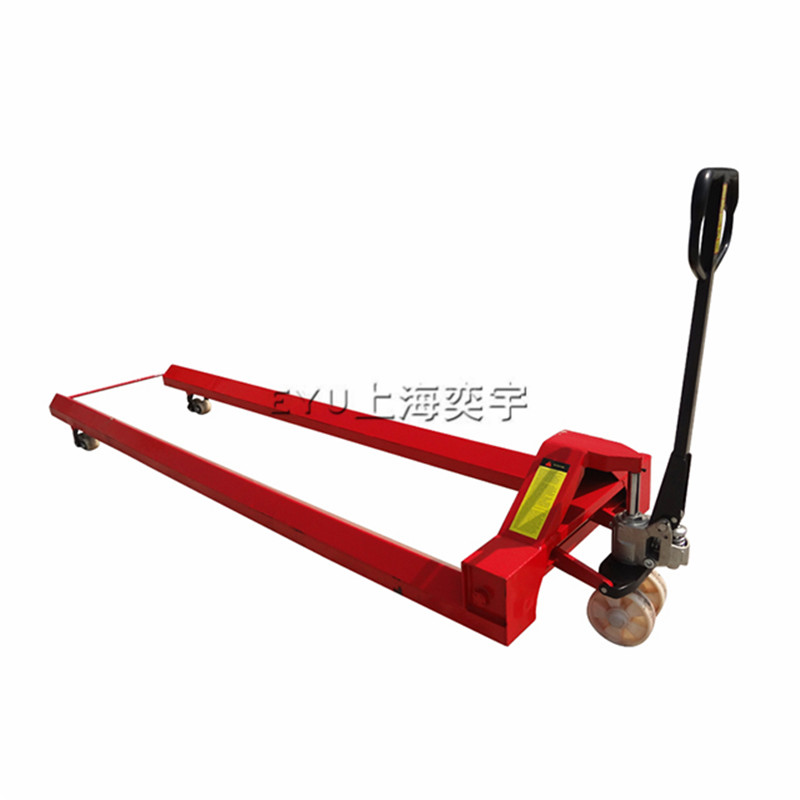

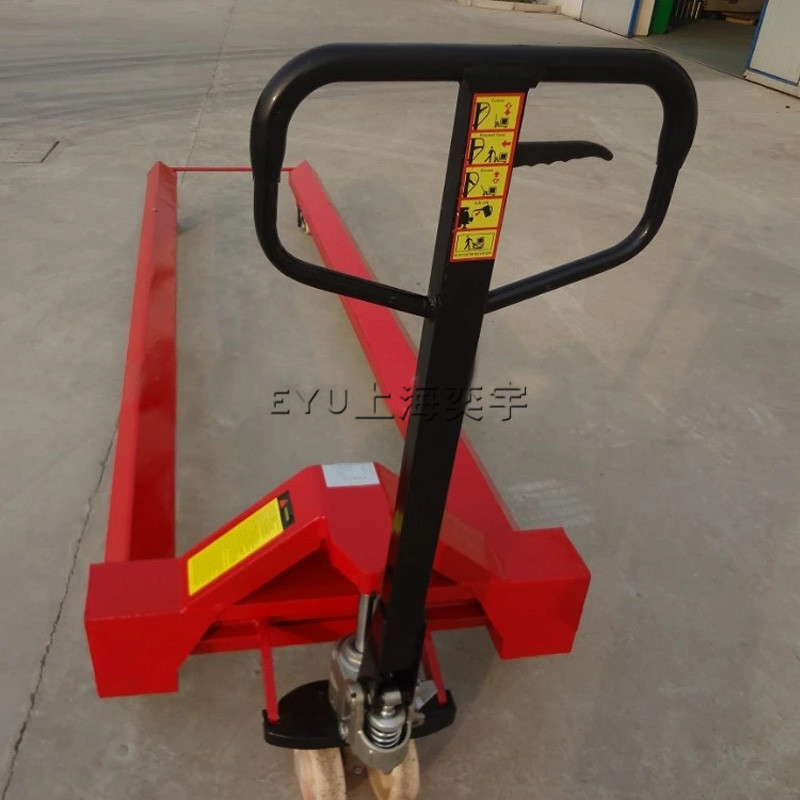

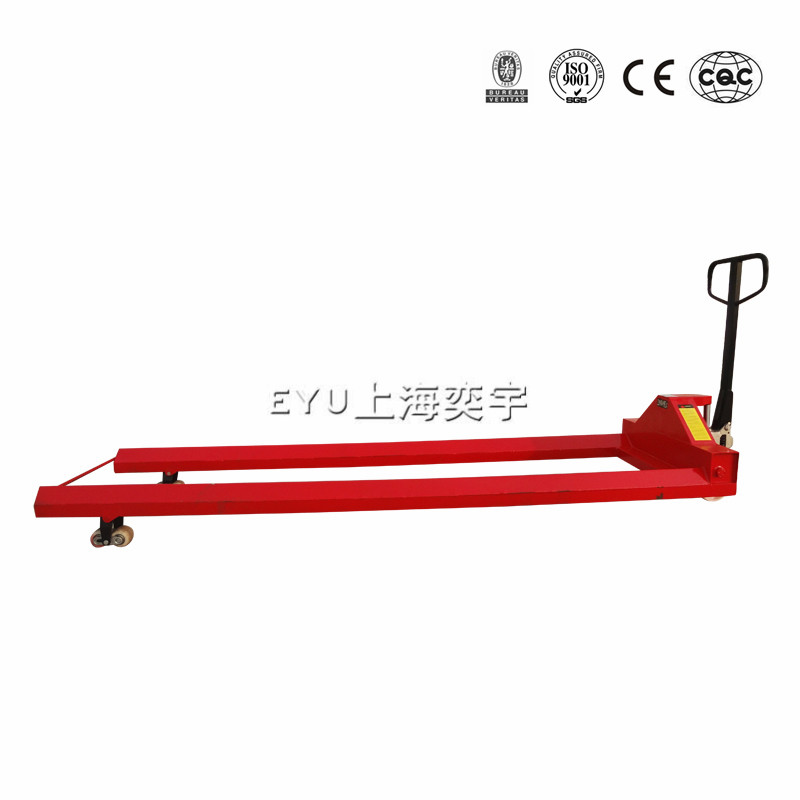

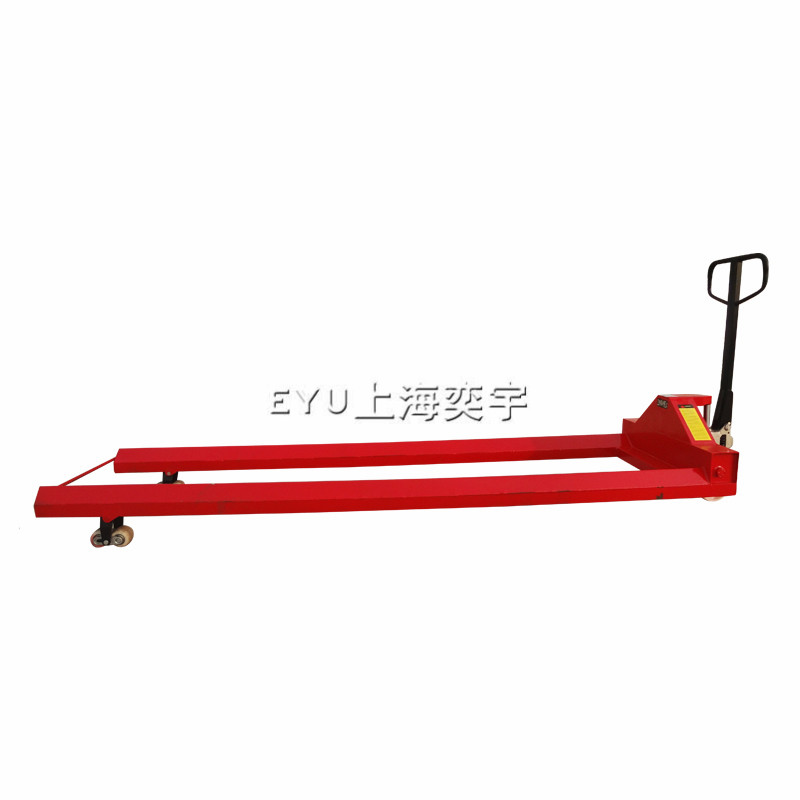

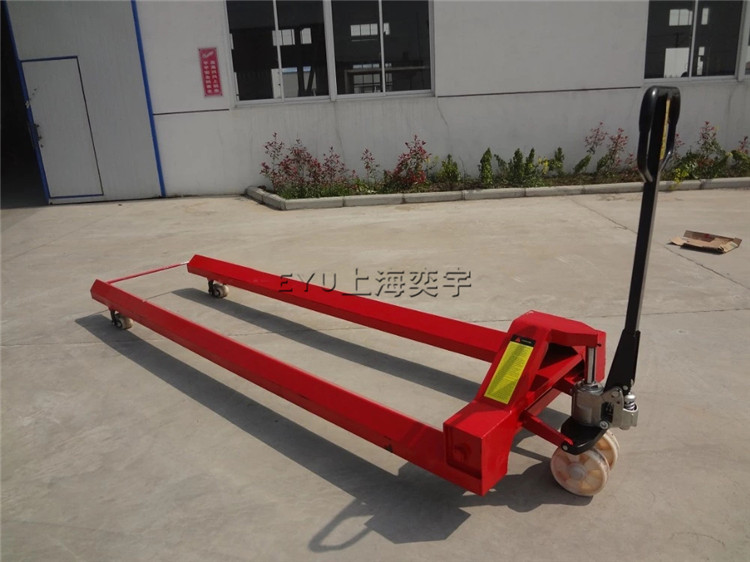

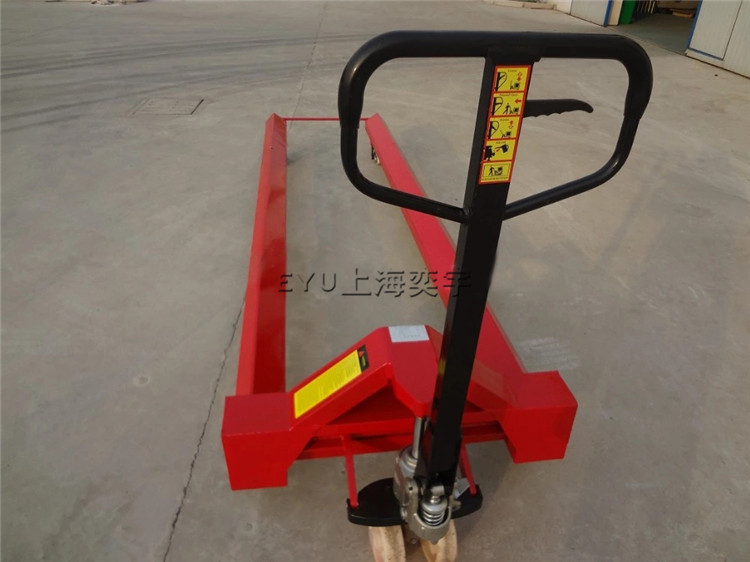

1.加長型手動紗輥經軸運輸車在貨叉的末端加裝連接桿,預防紗輥較重或直徑較大時貨叉變型導致貨物掉落,可拆卸,操作方便.
2.三角形貨叉內側有圓弧度,有效地保護圓形物的表面不受擠壓變形.
3.主要運動部位裝配有耐磨導向環,小體積液壓裝置，操作簡單，使用方便.
4.強鋼板制造,工藝精湛,油漆美觀,內在使用壽命長.
5.加長型手動紗輥經軸運輸車是倉庫車間常用的搬運工具,大大提高工作效率.
6.符合歐州EN7515標準. 可據客戶不同直徑和長度訂制.
產品參數
|
型 號 Model |
CBY400-Z |
CBY800-Z |
CBY1200-Z |
CBY1600-Z |
CBY2000-Z |
|
訂 貨 號Order Number |
5.10001 |
5.10002 |
5.10003 |
5.10004 |
5.10005 |
|
額定載重 Capacity (kg) |
400 |
800 |
1200 |
1600 |
2000 |
|
起升高度Fork lift height(mm) |
115 |
115 |
115 |
115 |
115 |
|
貨叉最低Fork min height (mm) |
145 |
145 |
145 |
155 |
155 |
|
貨叉最高Fork max.height(mm) |
260 |
260 |
260 |
270 |
270 |
|
貨叉單寬Fork width (mm) |
180 |
180 |
180 |
180 |
180 |
|
貨叉外寬Fork over width(mm) |
1000 |
900 |
800 |
600 |
600 |
|
貨叉長度Fork length (mm) |
2000 |
1800 |
1600 |
1400 |
1300 |
|
車身重量Weight (Kg) |
89 |
105 |
116 |
127 |
159 |
|
外形尺寸Over size(mm)L*W*H |
2400*1000*1370 |
2200*900*1370 |
2000*800*1370 |
1800*600*1370 |
1700*600*1370 |
|
通道要求 Channel request(mm) |
2500轉彎Turn |
2300轉彎Turn |
2100轉彎Turn |
1900轉彎Turn |
1800轉彎Turn |
|
行走通道Forward and Back request |
1100mm |
1000mm |
900mm |
700mm |
700mm |
|
后輪 Real wheels (mm) |
2*￠180*50 |
||||
|
前輪Front wheels (mm) |
4*￠80*70 |
||||
1.Added the connecting link at the end of the forks, prevent the materials fall when load heavier or larger rolls.
2.There is a circular arc in the triangle forks inner, protect the surface of the circle is not affected by extrusion deformation effectively.
3.Assemble a wear resistant guide ring, Small volume hydraulic device, operation is simple and easy to use
4.Super steel manufacturing, exquisite workmanship, paint and beautiful, inner long service lift
5.This is a common handling equipments for warehouse using, greatly improved work efficiency.
6.Comply with European standards EN7515, Can be customized according to customer different diameter and length
